| Application | | Turning Inserts | | Chip Breaker Type | AU |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |

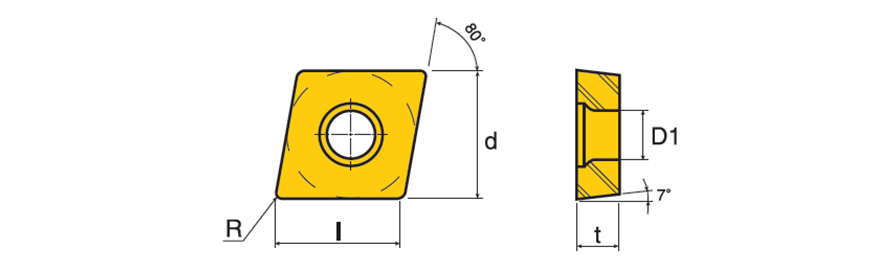

| Insert Thickness (S) | 2.38 mm | Shape | 80° Diamond |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Effective Length (LE) | 6 mm |
| Grade | 210 | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| COO | India | BrandName | Duracarb |
| FamilyName | CCGT |
Shipping Info
Weight per item
0.0020
Name
Turning Indexable Inserts
FamilyName
CCGT
BrandName
Duracarb
