| Applicable Material | | Cast Iron | | Grade | TT7005 |
| Application | | Turning Inserts | | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.8 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Shape | 80° Diamond |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 80 Degrees | Cutting Edge Effective Length (LE) | 12 mm |
| Cutting Edge Material | Carbide | Unit | M |
| Coating | TiCN+Al2O3 |
Product Features
| COO | India | BrandName | Duracarb |
| FamilyName | CNMA |
Shipping Info
Weight per item
0.0110
Name

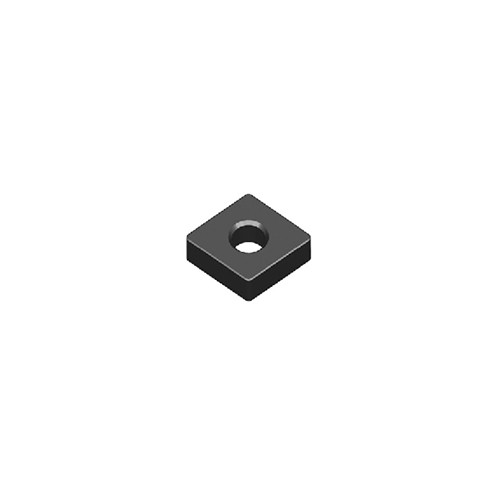

Turning Indexable Inserts
FamilyName
CNMA
BrandName
Duracarb
