| Application | | Turning Inserts | | Chip Breaker Type | 45 |
| Corner Radius (RE) | 0.8 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm | Shape | 35° Diamond |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 35 Degrees | Cutting Edge Effective Length (LE) | 16 mm |
| Grade | DC9025 | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| COO | India | BrandName | Duracarb |
| FamilyName | VNMG 45 |
Shipping Info
Weight per item
0.0119
Name

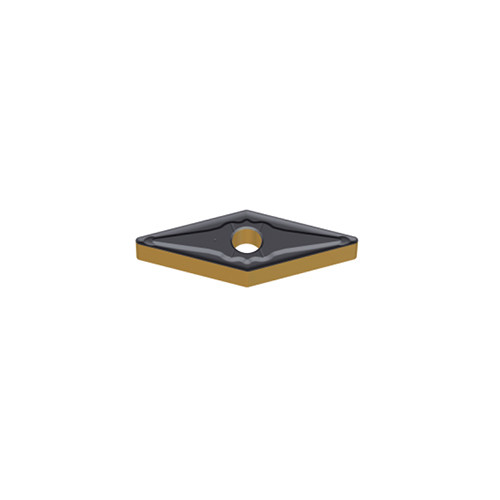

Turning Indexable Inserts
FamilyName
VNMG 45
BrandName
Duracarb
